Apakah Peranti Pelindung Lonjakan DC?
Peranti Pelindung Lonjakan DC (SPD) adalah penting untuk melindungi sistem elektronik daripada lonjakan voltan, memastikan kebolehpercayaan dan kecekapan. Keupayaannya untuk menyerap dan mengalihkan voltan...
• Suis pemencil DC tanpa polariti
• Reka bentuk modular, dengan pilihan 2-10 tahap.
• Hubungan positif atau hubungan songsang boleh dipilih.
• Pemasangan lubang tunggal, pemasangan panel, papan pengagihan, genggam pintu atau perumah boleh dipilih.
• Reka bentuk pemeteraian dinamik dan bahan pemeteraian kelas dunia menjamin tahap perlindungan IP66.
• Reka bentuk voltan penebat DC 1500V, lulus ujian IEC/EN60947-3:2009+A1+A2, AS60947.3, UL5081, GB/T14048.3, dengan pensijilan TUV, CE, CB, SAA, UL, dan CCC.
| MAIN PARAMETERS | ||||||
| Rated Courent (A) | 13 | 20 | 25 | 40 | 50 | |
| Rated insulation votage (Ui) | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Rated thermal curentth (Ith) | 32 | 40 | 55 | 55 | 55 | |
| Rated impulse withstand votage (Ulimp) | 8000V | |||||
| Rated shorttime withstand curent (1s) (lcw) | 780A | |||||
| MAXIMUM CABLE CROSS SECTIONS (INCL. JUMPER) | 6kA | |||||
| Solid or stranded | 4-16mm² | |||||
| Flexible | 4-16mm² | |||||
| Flexible (+multicore cable end) | 4-16mm² | |||||
| TORQUE | Altitude not exceeding 2000m. | |||||
| Tightening torque terminal screws M4 | 1.2-4.8Nm | |||||
| Tightening torque single hole mounting nut M16 | 2.0-2.3Nm | |||||
| Tightening torque knob screws M3 | 0.5-0.7Nm | |||||
| Switching on or off torque | 0.9-1.3Nm | |||||
| GENERAL PARAMETERS | ||||||

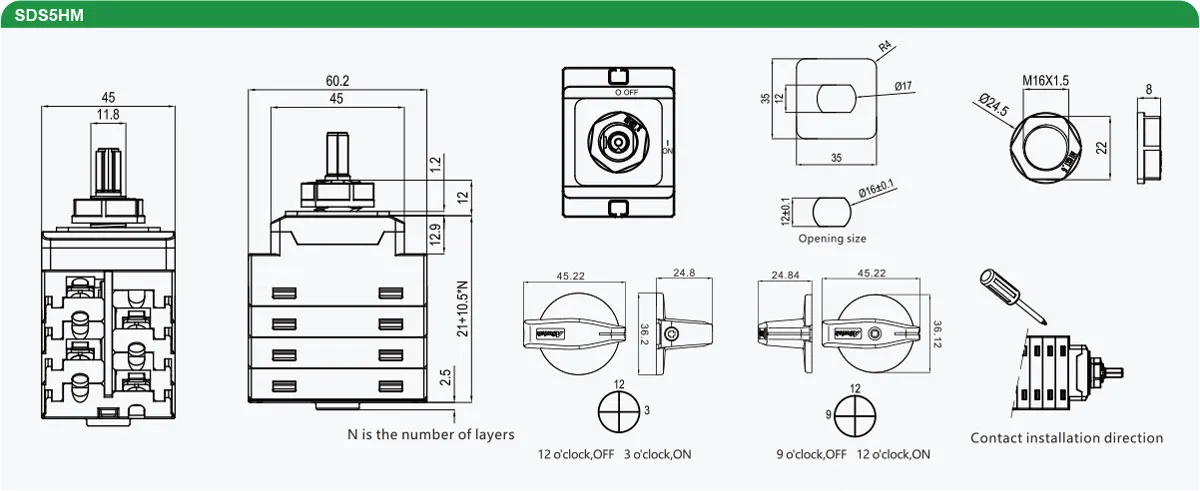

| Knob positions | 12 o'clock OFF, 3 o'clock ON (9 o'clock OFF, 12 o'clock ON) | |||||
| Electrical Life | Actua | 3000 Cycles | ||||
| Standard | 300 Cycles | |||||
| Mechanical Life | Actua | 10000 Cycles | ||||
| Standard | 10000 Cycles | |||||
| Number of DC poles | 2 or 4 (6/8 optional) | |||||
| Rated shortime withstand curent (1s) (lcw) | 780A | |||||
| Distance of contacts (per pole) | 8mm | |||||
| Operation temperature | -40℃ to +85℃ | |||||
| Store temperature | -40℃ to +85℃ | |||||
| Pollution degree | 3 | |||||
| Overvoltage category | Ⅱ | |||||
| IP rating of shafte and mounting nut | IP65 | |||||
Dapatkan Petikan Harga
